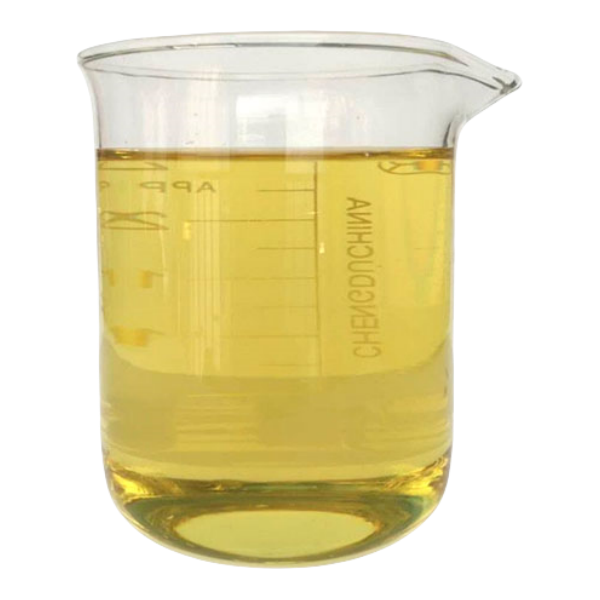

Mineral Oil Heat Conducting Oil

Mineral Oil Heat Conducting Oil
Product Introduction:

Sencro mineral oil type heat transfer oil is widely used and is very suitable for use in heat transfer oil furnaces.

Send Inquiry
Description

Product Information


Sencro mineral oil type heat transfer oil is widely used and is very suitable for use in heat transfer oil furnaces. It has a high distillation point and a high flash point. It is not easy to coke or clog pipelines. It has a significant energy-saving effect and can save more than 50% of energy compared with steam heating. It has a large heat carrying capacity, good thermal stability, does not require nitrogen protection, and has a long service life. It can be operated at room temperature, is easy to use, safe and reliable, and has no corrosion to ferrous and non-ferrous metals .

Physical and chemical indicators


Appearance

Light yellow transparent

Light yellow transparent

Light yellow transparent

Light yellow transparent

Light yellow transparent

Visual inspection

Flash point (open) ℃ ≥

195

200

205

210

215

GB/T267-88

Acid value mgKOH/g≤

0.02

0.02

0.02

0.02

0.02

GB/T264-83

Kinematic viscosity (50℃)MM²/S

19-29

21-31

22-32

23-33

38-53

GB/T265-1988

Carbon residue (Kang'S)%

0.02

0.02

0.02

0.02

0.02

GB/T268-87

Distillation range (2%V/V) ℃ ≥

320

340

350

360

370

ST/T0165-92

Moisture (V/V)%

0.02

0.02

0.02

0.02

0.02

GB/T260-77

Density(20℃)G/CM³

0.83-0.86

0.85-0.88

0.86-0.89

0.87-0.90

0.88-0.91

GB/T1884-92

Condensation point ℃≤

-15

-15

-20

-20

-20

GB/T510-83

Ash%≤

0.02

0.02

0.02

0.02

0.02

GB/T508-85

Copper corrosion (100℃.3HR)

class

class

Level 1

Level 1

class

GB/T5096-85

Expansion coefficient(100℃, 200℃)×10/℃

6.64-7.12

6.38-7.04

6.34-7.00

6.30-6.95

6.26-6.91

Specific heat KJ/KG C

100℃

2.20

2.30

2.34

2.40

2.44

200℃

2.60

2.70

2.74

2.82

2.88

Thermal conductivity
KJ/M.HR. ℃

100℃

0.458

0.466

0.470

0.474

0.478

200℃

0.432

0.440

0.444

0.448

0.452

Plant coefficient (20℃)

229.135

229.456

230.324

230.364

230.401

Maximum operating temperature ℃

300

320

330

340

350

Note: The above parameters are for reference only.



Excellent product performance


1. Thermal stability: (the most important performance)

This product selects base oils and additives with excellent thermal stability, so the product has excellent thermal stability. Reduce carbon deposits, reduce volatility, maintain good heat transfer performance and temperature control accuracy.

2. Oxidation stability: (one of the important performance)

This product selects base oils with excellent antioxidant properties and high-temperature antioxidant and anti-fouling additives, which can inhibit the speed of oxidized sludge generation and the tendency of deposition and scaling, so that the system maintains a good heat transfer effect.

3. Low volatility: (energy saving and long life)

The initial distillation point is used to indicate the volatility of the heat transfer fluid. The higher initial distillation point of this product gives it a very low vapor pressure and volatilization loss, which can ensure the stability of system operation.

4. Better safety

The flash point and auto-ignition point are used to indicate the safety of the heat transfer fluid. This product has a higher flash point and auto-ignition point, which can ensure the safety of system operation.

5. Heat transfer performance

This product has suitable viscosity, high specific heat and thermal conductivity, can effectively transfer or absorb heat, and improve fuel economy and operating efficiency.


Application range


Industrial field: Application industry and equipment Rubber and plastic industry: hot pressing, calendering, extrusion, vulcanization, artificial leather processing, film processing.

Fine chemicals: synthesis of medicines, pesticide intermediates, antioxidants, surfactants, spices, etc.

Oil and fat chemical industry: fatty acid distillation, oil decomposition, distillation, concentration, nitration.

Chemical fiber industry: polymerization reaction, melt spinning, thermosetting, fiber finishing.

Papermaking industry: hot melting machine, corrugated board processing machine, dryer.

Wood processing: composite board pressing, dryer.

Electrical processing: wire and cable manufacturing.

Energy industry: waste heat recovery, solar energy utilization, reactor heat extraction.

Food industry: grain drying, food baking. Air conditioning industry: home heating chemicals and.

Petrochemical industry: polymerization, decomposition, distillation, concentration, evaporation, melting equipment, etc.

Building materials industry: asphalt melting, insulation, gypsum board drying Textile printing and dyeing industry: hot melt dyeing, heat setting, drying equipment.


Packaging and Storage


Sencro high temperature heat transfer oil is packaged in 208L iron tube with uniform logo. Each barrel has a net weight of 170kg. It should be stored in a dry and ventilated place, away from exposure to sunlight. The shelf life is two years.
